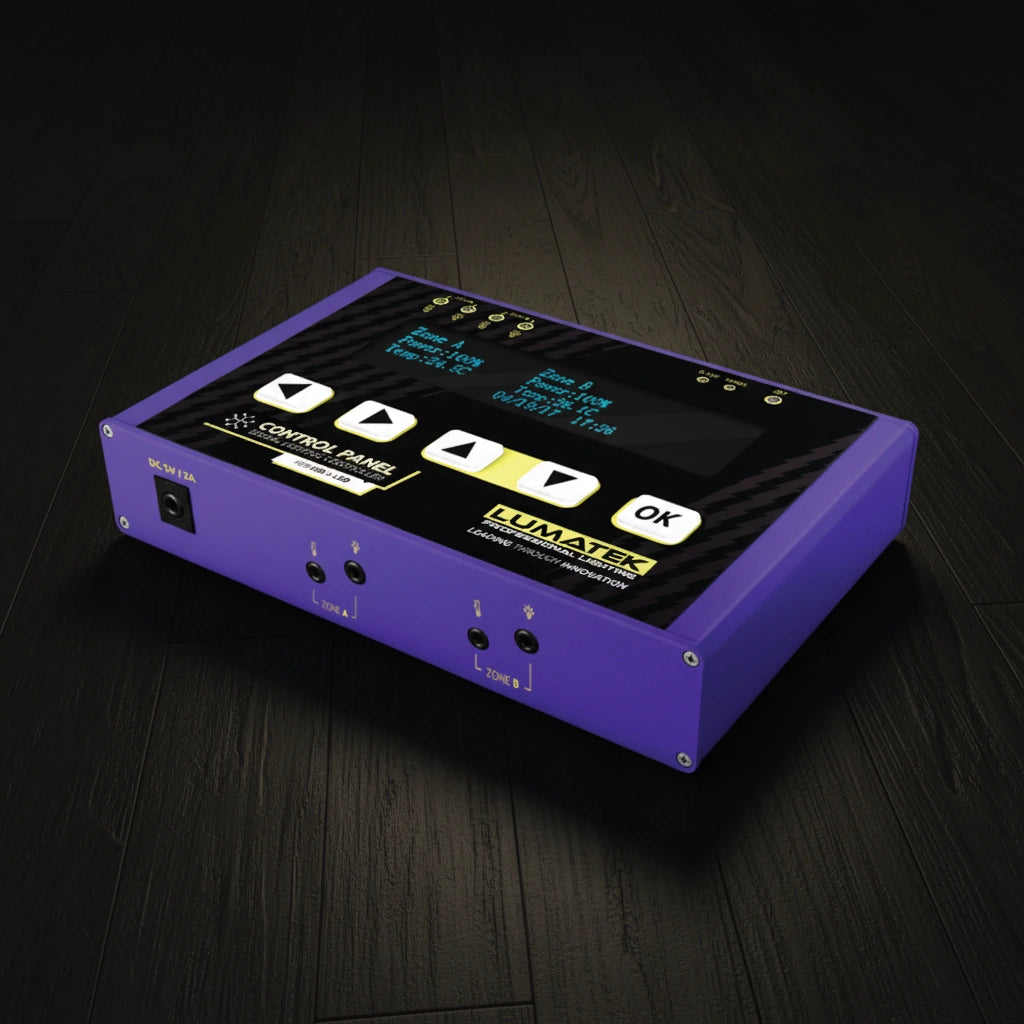

Lumatek Digital Panel Plus 2.0 — Dual Zone HID + LED Grow Room Controller

The Lumatek Digital Panel Plus 2.0 is a dual-signal, dual-zone digital lighting controller built for serious grow room automation. Control up to 400 HID ballasts or 100 LED drivers across two independent zones — with precise timing, 1% increment dimming, temperature-triggered safety control, and Sunrise/Sunset simulation. One controller. Two zones. Total control over your entire facility.

Why Serious Growers Choose the Digital Panel Plus 2.0

• ✅ Dual signal: RS485 (HID) + 0–10V (LED) — controls both HID ballasts and LED drivers from a single unit
• ✅ Two independent zones (Zone A & Zone B) — run two separate rooms, or combine for up to 400 HID or 100 LED fixtures in one room
• ✅ Up to 200 HID ballasts per zone (RS485 digital signal)
• ✅ Up to 50 LED drivers per zone (0–10V analog signal)
• ✅ 1% increment dimming precision — 10% to 115% power dimming range
• ✅ Sunrise/Sunset simulation — 0 to 30-minute gradual ramp-up and ramp-down to reduce plant stress
• ✅ Temperature-controlled safety dimming — automated dimming response across 0°C–40°C range
• ✅ Temperature-controlled safety switching — automated on/off response across 10°C–50°C range
• ✅ 24-hour light timing & switching — full photoperiod scheduling built in
• ✅ Light intensity and PPFD automation — automate dimming schedules across the full grow cycle

Dual Zone — Two Rooms or One Massive Room

Each of the two channels (Zone A and Zone B) operates independently, giving you two distinct control environments from a single controller. Use them to manage two separate grow rooms with different lighting schedules and intensities — or combine both zones to control up to 400 HID ballasts or 100 LED drivers in a single room. Each zone can also be set to control different-powered fixtures simultaneously:

• Zone A: 600W LED fixtures
• Zone B: 600W or 315W HID ballasts

This flexibility makes the Digital Panel Plus 2.0 the ideal controller for facilities running mixed HID and LED lighting, or transitioning from HID to LED without replacing the controller.

Precision Dimming — 1% Increments, 10% to 115%

The Digital Panel Plus 2.0 offers 1% increment dimming precision across a 10% to 115% power range — including overdrive capability beyond 100% for maximum output when conditions allow. Temperature-triggered safety dimming automatically reduces output as grow room temperature rises, protecting your crop and your fixtures without manual intervention.

Compatibility

HID Ballasts (RS485 digital signal):

• Lumatek controllable HID ballasts: 315W, 600W, 630W, 1000W

LED Drivers & Fixtures (0–10V analog signal):

• All Lumatek controllable LED drivers and fixtures

Full Specifications

• Power Supply: Adaptor 100–240V AC, 50/60Hz — DC 5V/2A
• Channels: 2 (Zone A & Zone B)
• HID Control Signal: RS485 digital
• LED Control Signal: 0–10V analog
• Max HID Ballasts per Zone: 200 (RS485)
• Max LED Drivers per Zone: 50 (0–10V)
• Total HID Capacity: 400 ballasts
• Total LED Capacity: 100 drivers
• Power Dimming Range: 10%–115%
• Power Regulation Accuracy: 1%
• Temperature Safety Dimming Range: 0°C–40°C
• Temperature Safety Switching Range: 10°C–50°C
• Sunrise/Sunset Duration: 0–30 minutes
• Light Timing: 24-hour scheduling
• Dimensions: 125 × 80 × 25 mm
• Weight: 0.8 kg

What’s In The Box

• 1 × Lumatek Digital Panel Plus 2.0
• 1 × Power adaptor and cable
• 2 × Temperature sensor cable (5m)
• 2 × HID control link cable (5m)
• 2 × LED control link cable

Running a Lumatek Zeus Pro setup? The Digital Panel Plus 2.0 is fully compatible with all Lumatek controllable LED drivers and fixtures. Questions about your specific setup? Contact Growers Depot AU — our specialists will help you configure the right control system for your room.
