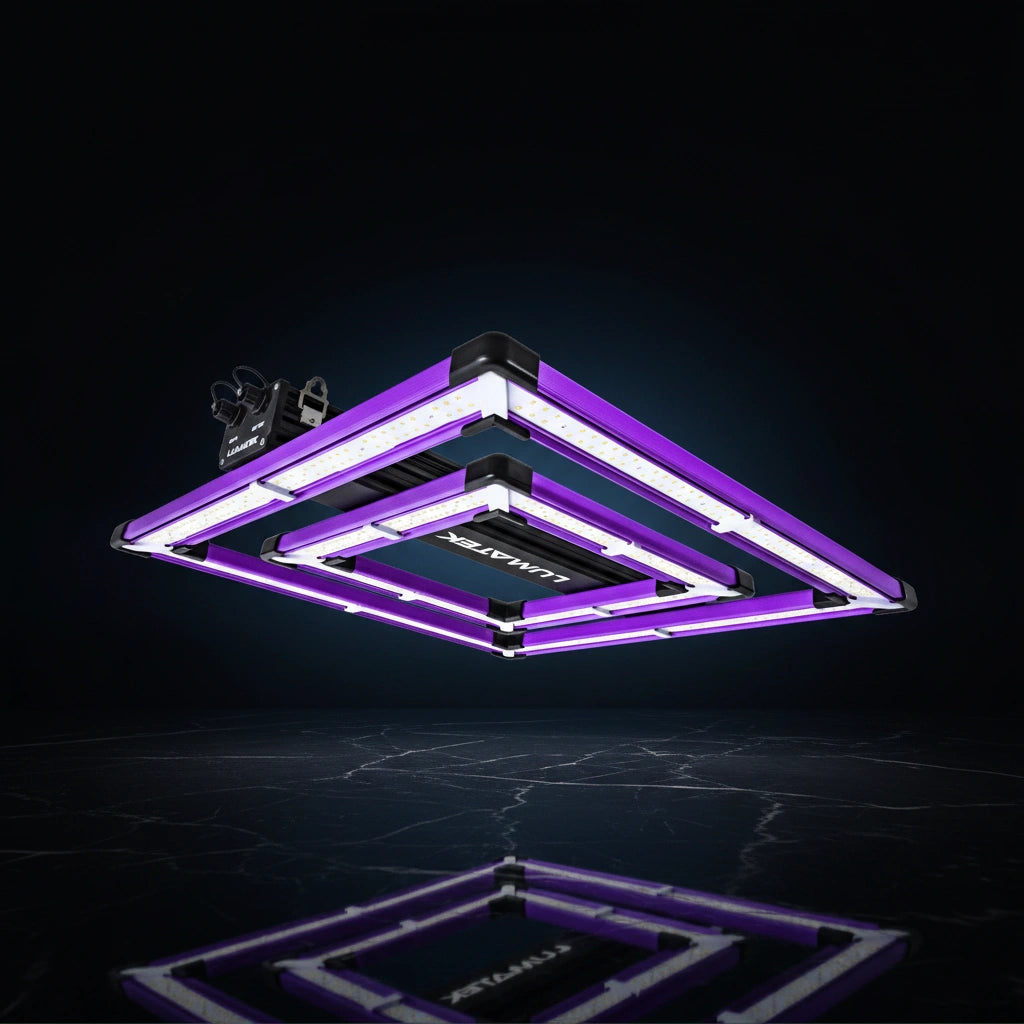

Lumatek ATS Pro 200W LED Grow Light | 508 μmol/s | 2.5 μmol/J | IP65 | Fanless | 0.8×0.8m

Lumatek ATS Pro 200W — Premium LED Performance for Tight Grow Spaces

Engineered for cultivators who need Lumatek quality in a compact, lightweight fixture, the ATS Pro 200W delivers 508 μmol/s PPF at 2.5 μmol/J efficacy across a precise 0.8 × 0.8m footprint. With fanless passive cooling, IP65 clear glue protection, White + Red + Far-Red top-bin diodes, and full Lumatek Control Panel Plus 2.0 compatibility — this is the most capable compact LED in the ATS Pro range. Plug in, hang up, and grow.

Why Growers Choose the ATS Pro 200W

• ✅ 508 μmol/s PPF at 2.5 μmol/J — high-intensity output for a compact fixture; ideal for 0.8×0.8m grow areas
• ✅ White, Red & Far-Red top-bin diodes — latest-generation, higher-efficiency diodes for a balanced full spectrum across all growth stages
• ✅ Evenly distributed diodes — upgraded layout across the full bar length for a larger, more even light spread and footprint with no hot spots
• ✅ Fanless passive cooling — innovative heat sink design eliminates the need for a fan; zero noise, no moving parts, significantly extended fixture lifespan
• ✅ IP65 rated — clear glue protection cover on LED bars; 99% light transmittance, corrosion resistance, extended diode lifetime
• ✅ Fully dimmable — high-quality Lumatek controllable driver; dims without losing efficiency across all growth stages
• ✅ Lumatek Control Panel Plus 2.0 compatible — 1% increment dimming, Sunrise/Sunset mode, temperature safety control, up to 100 fixtures per controller
• ✅ Plug & play assembly — user-friendly setup; no tools, no complicated installation
• ✅ Sole-source or supplemental — suitable as a primary light for propagation, veg, and flower, or as supplemental lighting in larger setups
• ✅ High-quality Lumatek driver — the same driver quality trusted across the entire Lumatek professional range

Fanless Passive Cooling — Silent, Reliable, Long-Lasting

The ATS Pro 200W uses an innovative heat sink design with passive natural convection to eliminate the need for a fan entirely. No fan means zero noise output, no moving parts to wear out or fail, and a significantly extended fixture lifespan. For growers in noise-sensitive environments or anyone who’s had a fan-cooled fixture fail mid-cycle, the fanless design is a meaningful reliability upgrade. The low-powered LED configuration further reduces LED operating temperature, increasing output stability and improving long-term light maintenance.

IP65 Clear Glue Protection — 99% Transmittance, Zero Compromise

The ATS Pro 200W features Lumatek’s clear glue protection cover technology on the LED bars — achieving 99% light transmittance without light loss. This coating provides IP65 waterproofing, extra corrosion resistance, and extended diode lifetime — all without sacrificing a single µmol/s of output. Built to perform reliably in humid grow environments, cycle after cycle.

White + Red + Far-Red — Full Spectrum for Every Stage

The ATS Pro range uses White, Red, and Far-Red top-bin diodes — a three-channel spectrum approach that covers the full photosynthetic range from propagation through to flowering. The upgraded diode layout distributes LEDs more evenly across the full bar length, resulting in a larger and more uniform light spread across the 0.8×0.8m footprint with no hot spots and no excessive heat at canopy level.

Precision Control — From Basic Dimming to Full Automation

The ATS Pro 200W includes a 0–10V dimmer for manual dimming out of the box. For full automation, pair with the Lumatek Control Panel Plus 2.0 for 1% increment dimming, Sunrise/Sunset simulation, temperature-triggered safety control, and management of up to 100 fixtures per controller.

Full Specifications

• Brand: Lumatek
• Model: ATS Pro 200W
• PPF Output: 508 μmol/s
• Fixture Efficacy: 2.5 μmol/J
• Light Source: Top-bin White, Red & Far-Red diodes
• Coverage Footprint: 0.8 × 0.8m
• IP Rating: IP65
• LED Protection: Clear glue coating — 99% transmittance
• Thermal Management: Passive (fanless)
• Dimming: Fully dimmable — 0–10V dimmer included
• External Control: Lumatek Control Panel Plus 2.0 or any 0–10V controller (up to 100 fixtures)
• Assembly: Plug & play
• Weight: 5.5 kg

What’s In The Box

• 1 × ATS Pro 200W LED Fixture with Driver
• 1 × Power Cable 230V
• 1 × 0–10V Light Dimmer + Velcro
• 2 × Metal Cable Hangers
• 1 × Manual

Need a larger footprint? See the Lumatek Zeus Pro range for 1.2×0.6m through to 1.5×1.5m coverage. Questions? Contact Growers Depot AU — our specialists will help you find the right fixture for your setup.
