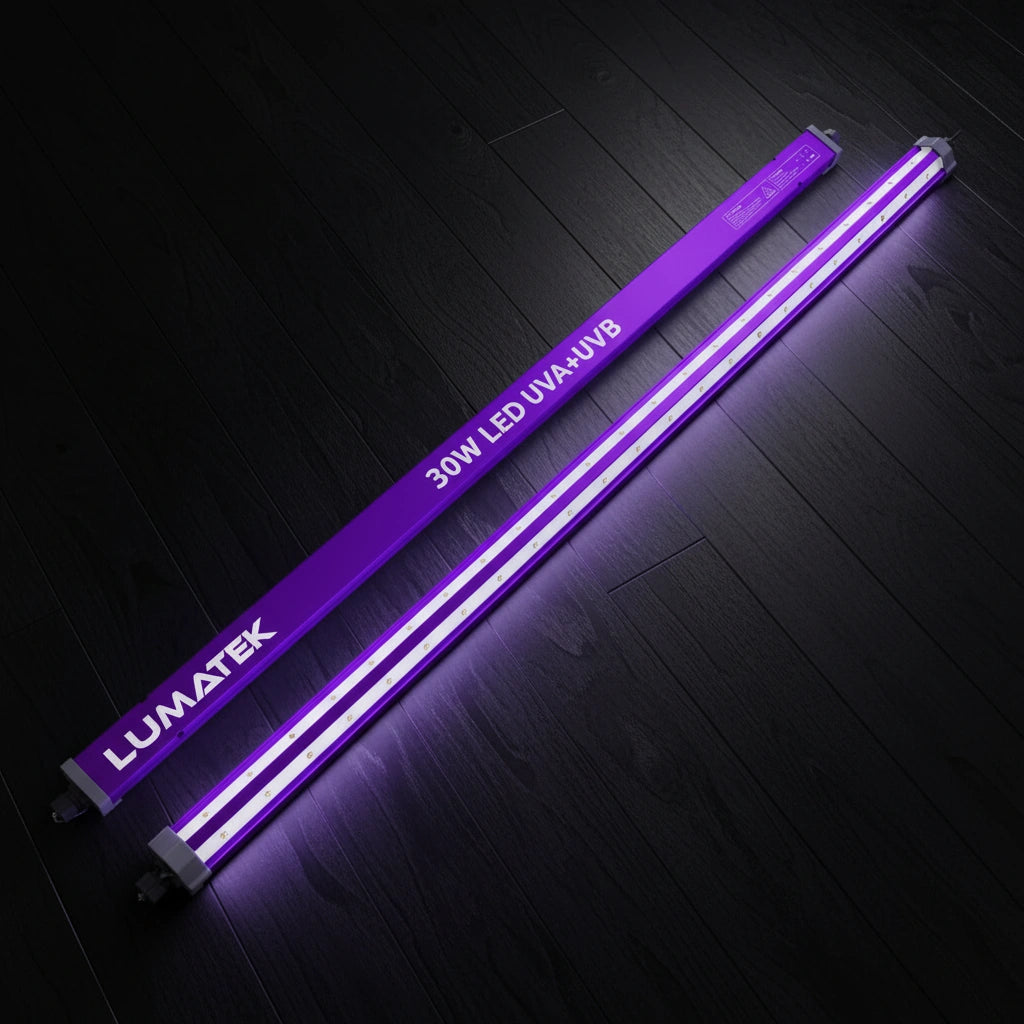

Lumatek 30W UV Supplemental LED Bar | UV-B + UV-A | Zeus Compatible | Daisy Chain | IP65

Lumatek 30W UV Supplemental LED Bar — Add UV-B & UV-A to Your Zeus Grow

Designed to integrate directly with the Lumatek Zeus LED fixture range, the 30W UV Supplemental LED Bar adds scientifically-dosed UV-B (280–315nm) and UV-A (315–400nm) radiation to your flowering stage — unlocking biological responses that standard full-spectrum fixtures can’t trigger. The result: improved flavour, enhanced aroma, and up to 30% increase in the main extractable substance. UV also helps control mould formation through gentle UV-B doses, reducing the need for chemical interventions.

What UV Does for Your Crop

• ✅ Up to 30% increase in extractable substance — UV stress response drives secondary metabolite production including terpenes, flavonoids, and resins
• ✅ Enhanced flavour and aroma — ultraviolet signalling triggers the biological pathways that produce a more complex, premium final product
• ✅ Mould control — gentle UV-B doses help suppress mould formation and reduce reliance on chemical interventions via UV-A effect
• ✅ Scientifically-dosed UV-B + UV-A — designed to deliver ideal radiation doses based on scientific support; no UV-C produced
• ✅ 2.2 kJ/day UV-B energy (12-hour photoperiod) — 100 mW UV-B output per fixture
• ✅ 518 kJ/day UV-A energy (12-hour photoperiod) — 1200 mW UV-A output per fixture

Built for the Lumatek Zeus Range — Fits Directly Into the Frame

The 30W UV Bar is engineered to integrate directly into Lumatek Zeus LED fixture frames. For best canopy coverage, Lumatek recommends the following minimum quantities:

Minimum 2 units with:

• Zeus 465W 2.6 — 1.2×1.2m footprint
• Zeus 600W 2.6 — 1.4×1.4m footprint
• Zeus 465W Pro 2.9 — 1.2×1.2m footprint
• Zeus 600W Pro 2.9 — 1.4×1.4m footprint
• Zeus 1000W Xtreme CO2 — 1.5×1.5m footprint

Minimum 3 units with:

• Zeus 1000W Pro — 1.5×2.0m footprint

How to Apply UV — Recommended Protocol

Always use the UV Bar in combination with a Lumatek Zeus full-spectrum LED fixture — never as a standalone light source. Apply during the flowering stage only, starting from a 12-hour photoperiod or less, for at least 4 weeks before harvest. Follow the distance-to-canopy guidelines in the Lumatek Grow Light Strategies table for optimal UV spread.

If you notice plant stress or damage, increase the distance between the bar and canopy, or reduce UV exposure by shortening the photoperiod. UV-B is a powerful tool — follow the recommended protocol for best results.

Daisy Chain Capable — Connect Multiple Bars Easily

The 30W UV Bar features a single input and output socket for either the Power Cable or Daisy Chain Cable, allowing multiple bars to be linked across a Zeus frame. This design ensures unit performance integrity across the chain.

⚠️ Important: The Power Cable (4m) and Daisy Chain Cable (1.5m) are sold separately. Please add the appropriate cables to your order.

Key Features at a Glance

• ✅ IP65 rated — waterproof and dustproof; built for grow room conditions
• ✅ Passive thermal management — no fans, no moving parts
• ✅ Daisy chain capable — link multiple bars across a Zeus frame
• ✅ Integrated 30W driver — no external driver required
• ✅ No UV-C produced — safe for use in grow environments per Lumatek specification
• ⚠️ Not dimmable — fixed output; manage UV dose via photoperiod duration and canopy distance
• ⚠️ No external controller compatibility — on/off via timer only

Full Specifications

• Brand: Lumatek
• Model: 30W UV Supplemental LED Bar
• UV-B Output (280–315nm): 100 mW
• UV-A Output (315–400nm): 1200 mW
• Daily UV-B Energy: 2.2 kJ/day (12-hour photoperiod)
• Daily UV-A Energy: 518 kJ/day (12-hour photoperiod)
• Light Source: 8 × UV-B diodes + 40 × UV-A diodes
• Input Voltage: 20–240V AC, 50–60 Hz
• Driver: Integrated 30W, 220–240V AC
• Input Power: 30W (±5%)
• Power Factor: >0.98
• Footprint: 1.2 × 0.6m
• Light Distribution: 140°
• Application: Multi-layer, Room, Tent
• IP Rating: IP65
• Thermal Management: Passive
• Dimming: No
• External Control: No
• Daisy Chain: Yes
• Dimensions: 1000 × 48 × 42 mm
• Weight: 1.2 kg
• Max. Ambient Temperature: 40°C
• BTU: 102 BTU/h
• Lifespan: L90 >8,500 hours
• Warranty: 1 Year
• Certifications: CE

⚠️ Power Cable (4m) and Daisy Chain Cable (1.5m) are sold separately — please add to your order. Questions about UV integration with your Zeus setup? Contact Growers Depot AU.
