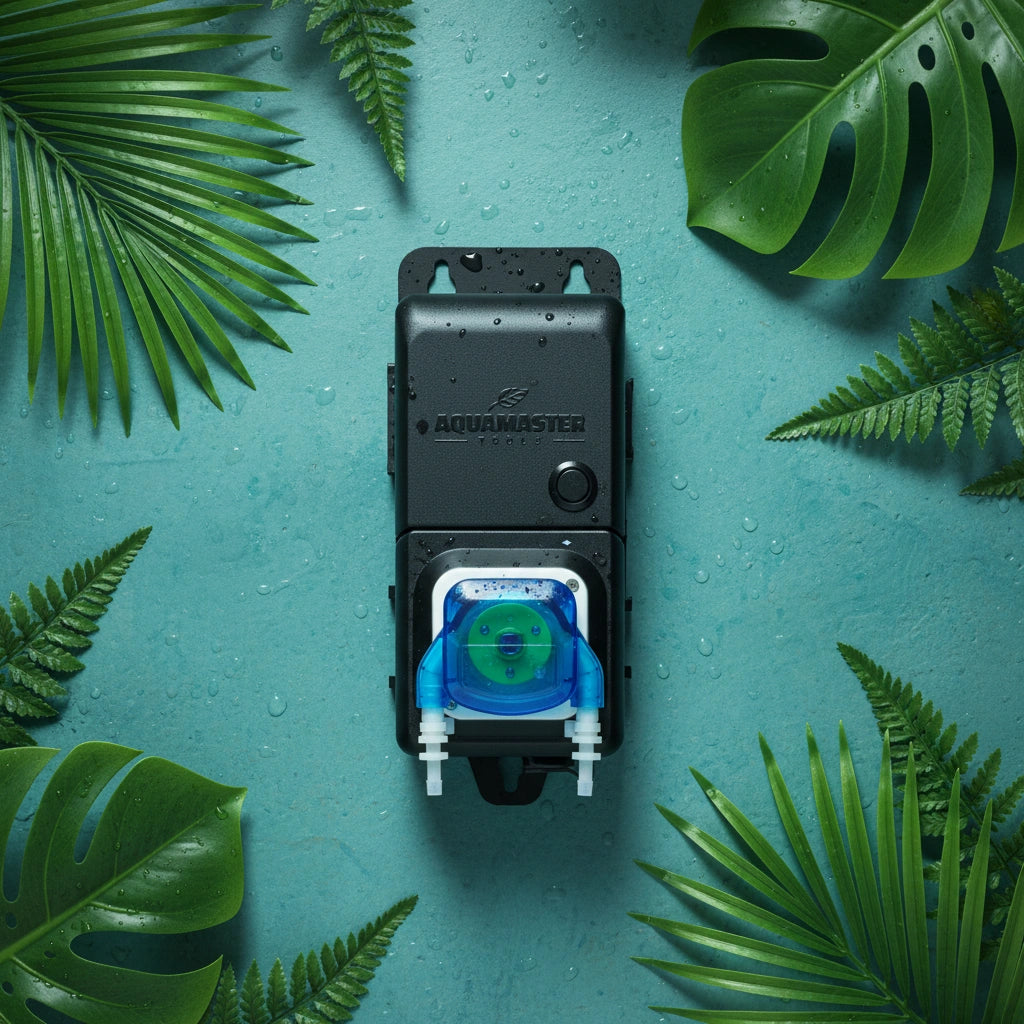

Aquamaster C10 Single Peristaltic Pump for pH or Nutrient Dosing

💧 One Pump. Total Flexibility — pH or Nutrient Dosing

The Aquamaster C10 is a compact, single-channel peristaltic dosing pump built for precision. Whether you need to automate pH adjustment (pH+ or pH−) or dose a single nutrient line, the C10 handles it with a consistent 1.5ml per second dosing rate. Use it standalone or expand an existing C30 setup to 4 pumps. 🌱

✅ Why Growers Choose the C10

• 💧 Single peristaltic pump channel — precise, consistent 1.5ml/sec dosing
• ⚗️ pH or EC dosing — use for pH+, pH−, or a single nutrient line
• 🔌 Three flexible connection modes — pH pump, standalone EC pump, or C30 expansion
• 🔗 UTP port on bottom — clean plug-and-play connection to controller or C30
• 🛠️ Manual priming button — fill or empty tubing easily during setup or maintenance
• 🔧 Side slide rail — mechanically links to C30 or C20 modules for a tidy system build
• 📦 Everything included — tubing, UTP cable, and international power adapter in the box

🔗 Connection & Use Options

⚗️ As a pH Dosing Pump (pH+ or pH−):

• Connect to the left UTP port on your Aquamaster controller
• Select pH+ or pH− function in the controller menu
• Recognised as the pH pump

🌱 As a Standalone EC Pump (1 nutrient line):

• Connect to the right UTP port on your Aquamaster controller
• Recognised as Pump 1 in the controller menu

🔗 As a C30 Expansion (4 nutrients total):

• Connect to the right UTP output on a C30 unit
• Recognised as Pump 4 in the controller menu

⚠️ Note: Maximum system capacity is 5 EC pumps + 1 pH pump per controller. The C10 does not have a UTP output and cannot be expanded further.

🌿 Perfect For

• Automating pH adjustment (pH+ or pH−) in hydroponic systems
• Single-nutrient dosing setups
• Expanding a C30 from 3 to 4 pumps
• Compact grow rooms where space and simplicity matter
• Integration with Aquamaster EC/pH controllers

📋 Technical Specifications

• Pumps: 1× peristaltic pump channel
• Dosing Rate: 1.5ml per second
• Application: pH dosing (pH+ or pH−) or EC nutrient dosing
• Connection: UTP input (bottom) — left port (pH) or right port (EC/expansion)
• Expansion: Not expandable (no UTP output)
• Side Rail: Compatible with C30 and C20 modules
• Max pumps per controller: 5 EC + 1 pH
• Weight: 1.2kg

📦 What's In The Box

• 1× C10 dosing unit (1 peristaltic pump)
• 1× Tubing (3 metres)
• 1× UTP cable (150cm)
• 1× International power adapter

💡 Pro tip: Not sure whether to use the left or right UTP port? Left = pH, Right = EC/nutrient. It’s that simple — and you can always change the function in the controller menu.
